2J-Multiband 2JCP254260Xx
Manufacturer : Multiband Antennas Limited
Model : 2JCP254260Xx
-
Embedded Antenna
-
Thru-Hole Mount
-
Ground Plane Dependent
-
High Efficiency
2J-Multiband 2JCP254260Xx
Manufacturer : Multiband Antennas Limited
Model : 2JCP254260Xx
-
Embedded Antenna
-
Thru-Hole Mount
-
Ground Plane Dependent
-
High Efficiency
Low-Profile Ceramic Patch Thru-Hole Mount Antenna
Features
- Embedded Antenna
- Ground Plane Dependent
- 5.1 dBic Iridium Peak Gain
- High Efficiency
- Ceramic Material
- Iridium® Certified Antenna
Product Specifications and Certifications
| Mechanical | |
|---|---|

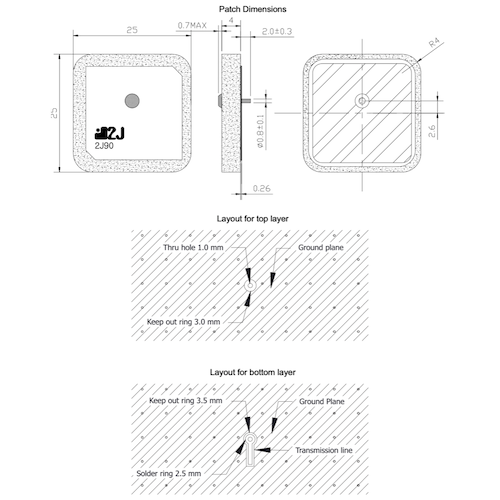

| Dimensions (L x W x H) | 25mm x 25mm x 4mm |
| Iridium Embedded Technology | Iridium 9602 Module , Iridium Core 9523 Module |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Ingress Protection | IP67, IP69 |
| RF Interface | |
| Frequency Range | 1616 - 1626.5 MHz |
| I / O Impedence | 50 Ohm |
- Iridium Certified
- IP67
- IP69
