DriveDOCK Extreme Corded Push-to-Talk (PTT) Bundle
Model : EXTRMDD-PTT-C1
Services: Iridium Push-To-Talk
-

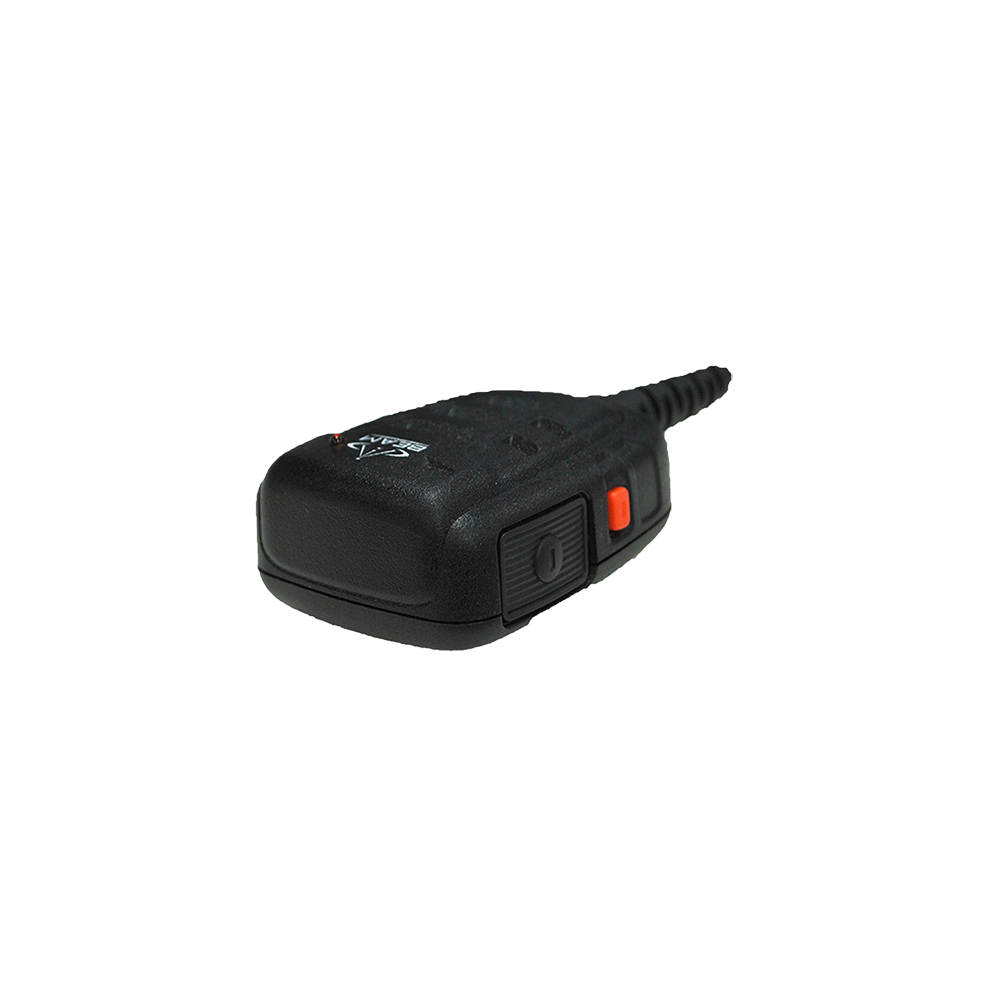

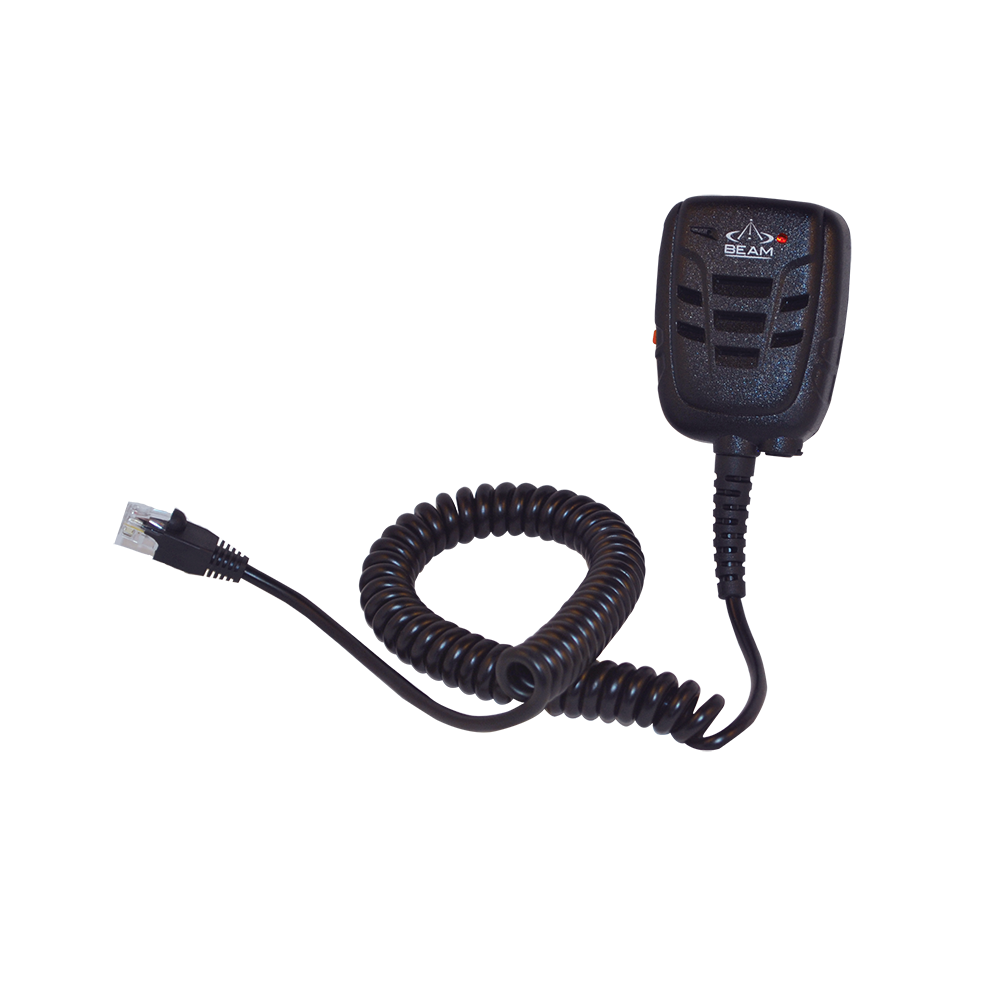

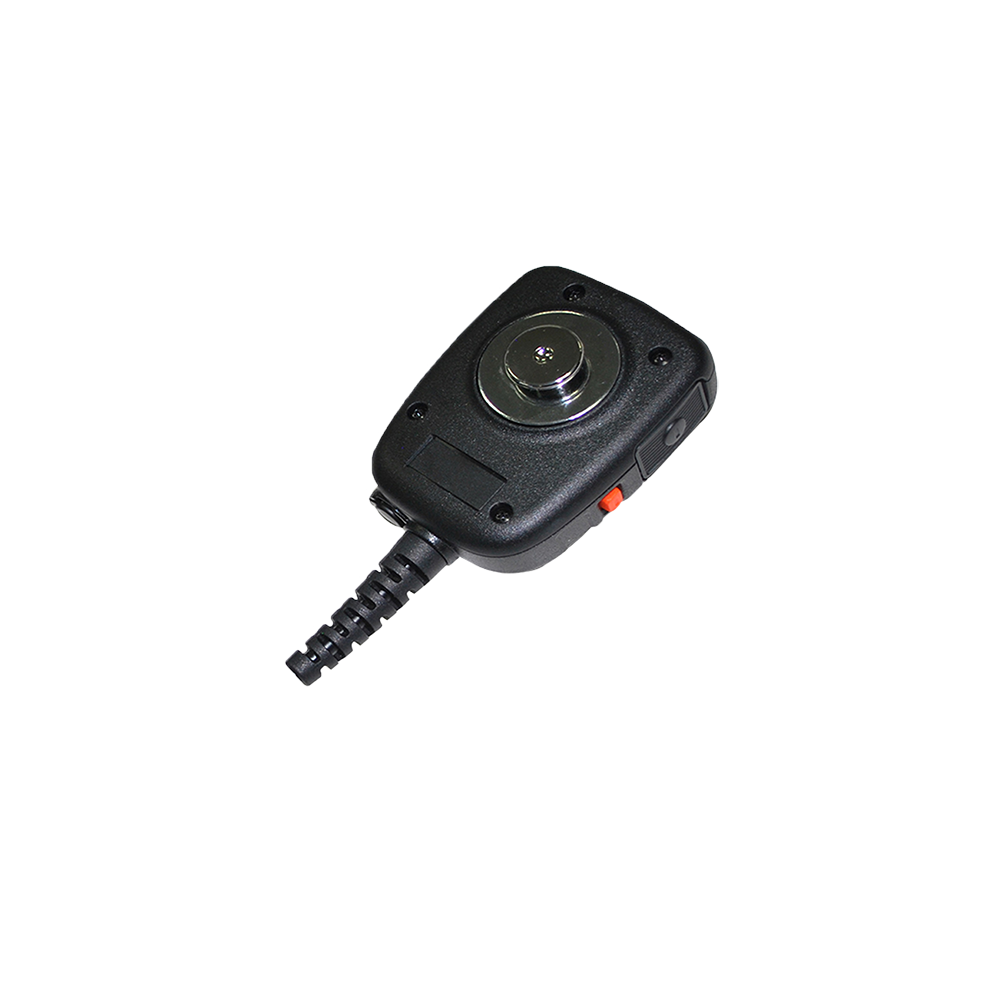

Rugged Mic/Speaker Handset
-
Improved Audio Quality
-
Supports Iridium Phone and Push-to-Talk (PTT) Mode
DriveDOCK Extreme Corded Push-to-Talk (PTT) Bundle
Model : EXTRMDD-PTT-C1
Services: Iridium Push-To-Talk
-
Rugged Mic/Speaker Handset
-
Improved Audio Quality
-
Supports Iridium Phone and Push-to-Talk (PTT) Mode
Cost Effective Push-To-Talk on the Go
The DriveDOCK Extreme Corded PTT Bundle is a cost effective PTT solution and supports all features of the Iridium Extreme® PTT service. It also supports handsfree speakerphone attached to the dock, extending the power of the Iridium Extreme PTT Device to the palm of your hand, in a fixed location or in a vehicle.
Durable and Rugged
This PTT device is just as durable and rugged as it is cost effective. The affordable Push-To-Talk bundle service also provides peace of mind knowing that it can be used in a variety of situations.
- Durable & Rugged
-
Can be used in a variety of environments due to its durability and ruggedness
- Improved Audio Quality
-
Upgraded audio quality enables users to hear one another better, even in noisy conditions
- Supports Multiple Iridium Modes
-
Can be utilized in multiple ways including Iridium phone as well as Push-To-Talk mode
Product Specifications and Certifications
| DriveDOCK Extreme Physical | DriveDOCK Extreme | RF Interface | DriveDOCK Extreme Power | |
|---|---|---|---|---|
| Mechanical | ||||
| Dimensions (L x W x H) | 212mm x 83mm x 76mm | - | - | - |
| Weight | 480 g | - | - | - |
| Iridium Embedded Technology | Iridium Extreme PTT | - | - | - |
| Environmental | ||||
| Operating Temperature Range | - | -30 to +70 ℃ | - | - |
| Operating Humidity Range | - | <85 % RH | - | - |
| Storage Temperature Range | - | -35 to +85 ℃ | - | - |
| RF Interface | ||||
| Frequency Range | - | - | 1616 – 1626.5 MHz | - |
| Power | ||||
| Input Voltage Range | - | - | - | 9-32 VDC |
| Maximal Current | - | - | - | 2000 mA |
| Maximal Power | - | - | - | 8.4 W |
| Idle Current Average | - | - | - | 70 average mA |
| Idle Current Peak | - | - | - | 700 peak mA |
| Idle Power | - | - | - | 0.84 W |
- Iridium Certification
- Electromagnetic Compatibility (EMC) Compliance
- Conformité Européenne (CE) Compliance
- Electrical Safety
- Restriction of Hazardous Substances Directive (RoHS)
- C-Tick (Australia)
