Flightcell® DZMx
-
Equipped with Iridium® Push-To-Talk (PTT)
-
Uninterrupted Tracking Between Phone and PTT Modes
-
Wi-Fi and Bluetooth Connectivity Options
-
External SIM Card Support
-
Auto-Switching Between Satellite and Cellular
Flightcell® DZMx
-
Equipped with Iridium® Push-To-Talk (PTT)
-
Uninterrupted Tracking Between Phone and PTT Modes
-
Wi-Fi and Bluetooth Connectivity Options
-
External SIM Card Support
-
Auto-Switching Between Satellite and Cellular
Small, Lightweight, Smart, and Flexible
An all-in-one satellite and cellular solution for global voice, data and aircraft tracking. Flightcell DZMx provides extensive voice, data and tracking capabilities in a small and lightweight form-factor. It can be easily customized and configured to enhance your specific operational requirements.
Truly Global Voice, Data, & GPS
The Flightcell DZMx is an all-in-one purpose-built product for the transportation industry and with an emphasis on aviation. It transmits and receives voice and data via the truly global Iridium network and/or a cellular network and has in-built GPS tracking functionality.
- Integrated Voice Calls
-
Provides dual-channel Iridium satellite and/or cellular network communications through your aircraft’s intercom. Experience High Definition (HD) voice through your headset, and pair with devices
- Messaging and Broadband Data
-
With its built-in modem (or modems) Flightcell DZMx lets you use a connected PC, tablet or keypad to create, send and receive messages and email
- Iridium Push-To-Talk
-
Equipped with Iridium Push-To-Talk (PTT) for truly global one-to-many group communications capabilities
- Flexible Configurations
-
Designed to let you choose from multiple voice and data configurations, connecting your aircraft to the world via narrowband and cellular broadband networks

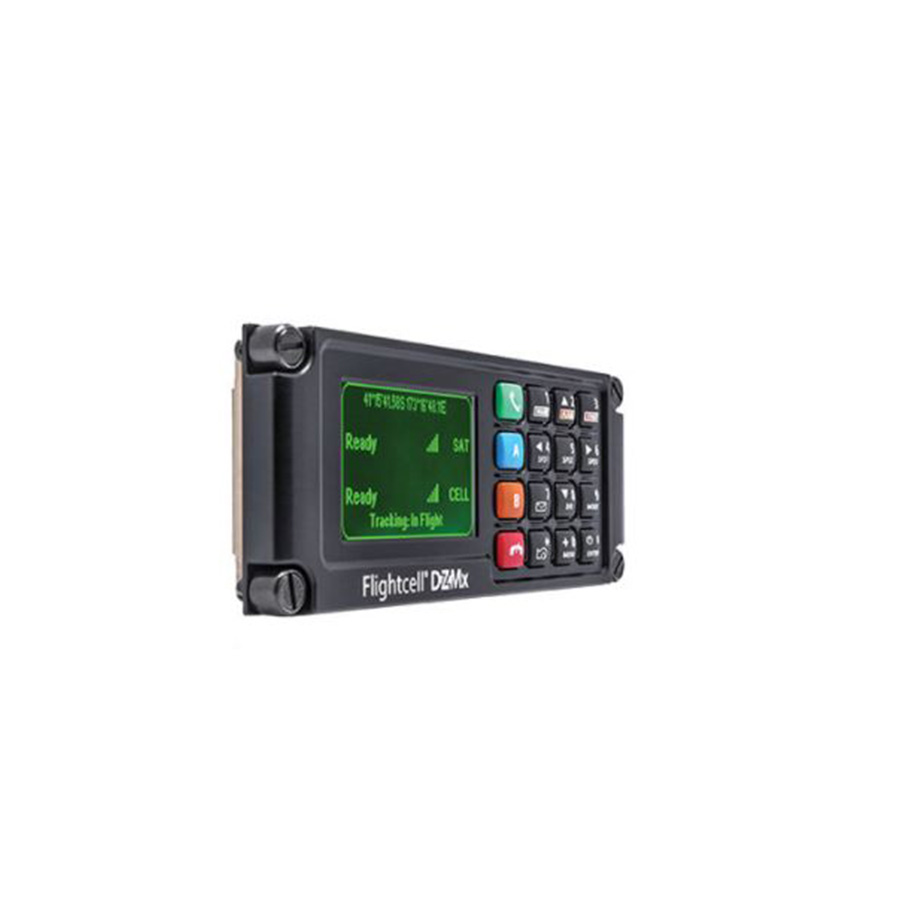

- DZMx Remote Head Unit
-
The optional DZMx remote head unit allows full operational functionality from one or multiple remote locations on the aircraft
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 54mm x 110mm |
| Weight | 580 g |
| Environmental | |
| Operating Temperature Range | -40 to +70 ℃ |
| Durability Standard | MIL.STD 3009 |
| Ingress Protection | IP65 |
| RF Interface | |
| I / O Impedence | 600 Ohm |
| Power | |
| Input Voltage Range | 12 - 32 VDC |
| Network | |
| Additional Networks | Auto-switching between satellite and cellular |
| Telephony | One or two voice channels with simultaneous calling capability |
| Location Based Services | Built-In GPS Tracking Functionality |
| Wi-Fi | |
| Interface | RS232, RS-485/422, USB-Micro AB, USB Via D25 or D38999, Ethernet (10/100), (5) General Purpose Inputs, (2) General Purpose Outputs |
- AFF compliant in U.S.A, Canada and Australia
- FDR to meet FAA rule 135.607 for Helicopter Air Ambulances (HAA)
