Hawkeye 5500
Model : 300500
Services: Iridium Short Burst Data® (SBD®)
-
Real-Time, Two-Way Asset Tracking, Mission Coordination, Analytics, and Situational Awareness
-
Full Integration of On-Board Vehicle Systems
-
Automatic Monitoring and Alerting on Driver Safety and Emergency Situations
-
Proactive Vehicle Health Monitoring like Maintenance Warnings
-
Upgrade or Configure Remotely with Bluetooth or Cellular
Hawkeye 5500
Model : 300500
Services: Iridium Short Burst Data® (SBD®)
-
Real-Time, Two-Way Asset Tracking, Mission Coordination, Analytics, and Situational Awareness
-
Full Integration of On-Board Vehicle Systems
-
Automatic Monitoring and Alerting on Driver Safety and Emergency Situations
-
Proactive Vehicle Health Monitoring like Maintenance Warnings
-
Upgrade or Configure Remotely with Bluetooth or Cellular
A Comprehensive Vehicle Management & Comms System

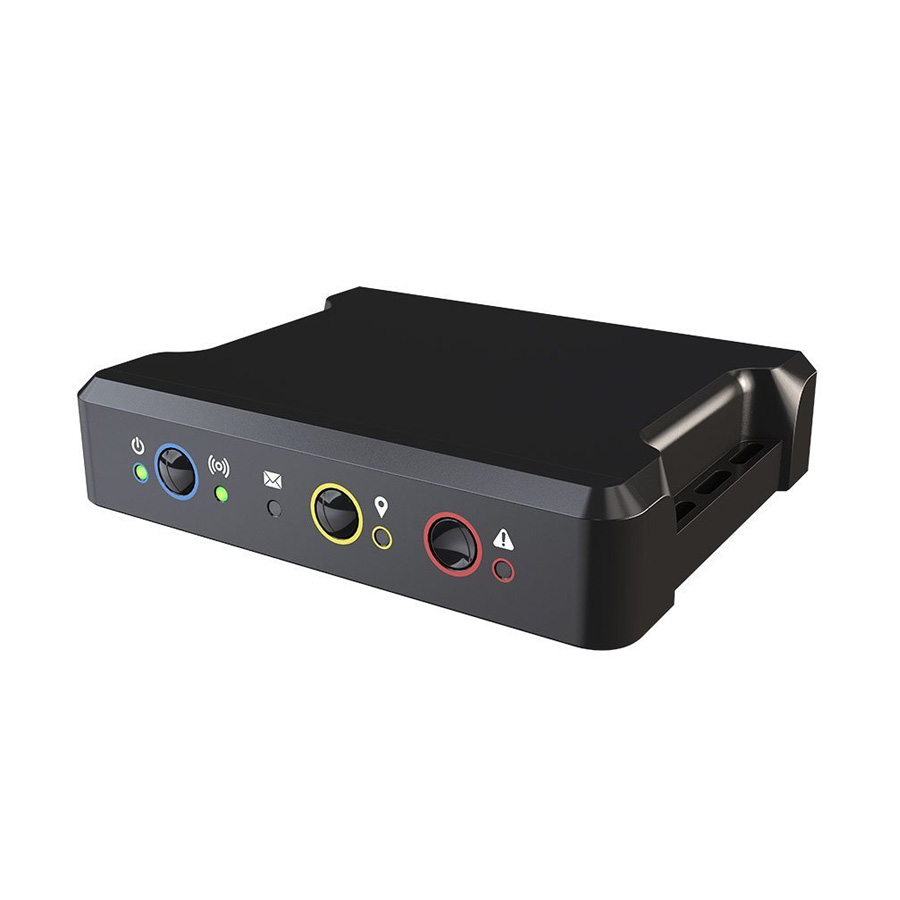

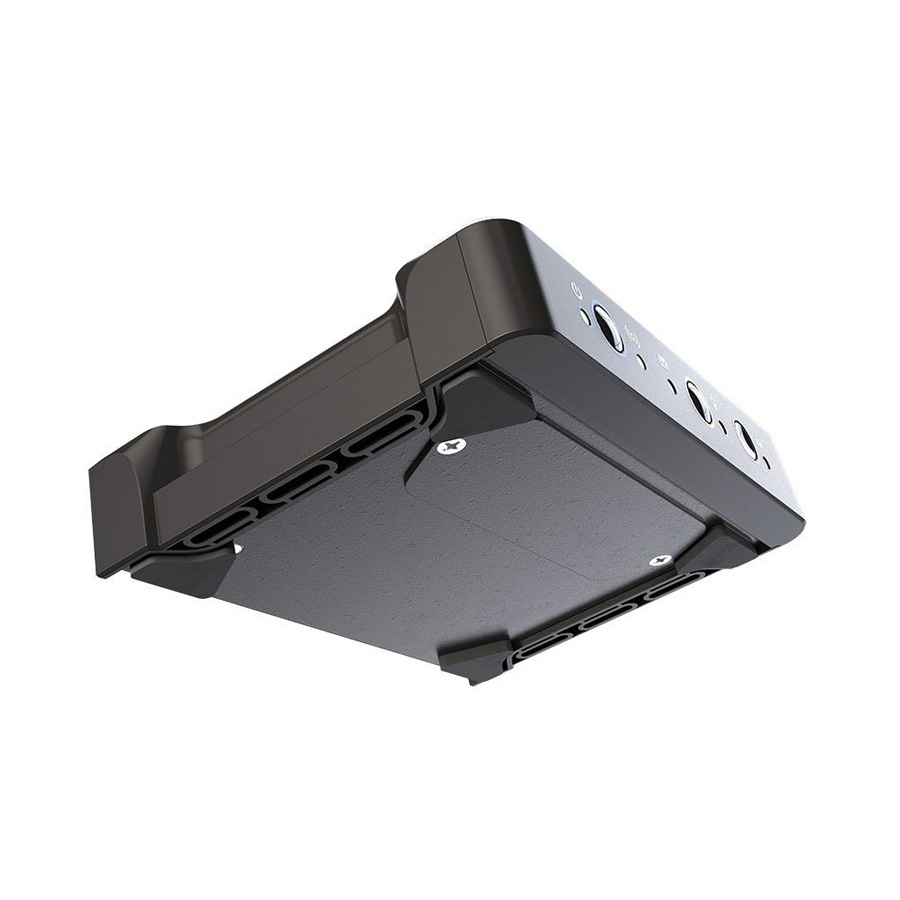

The HawkEye 5500 (HE5500) is a dual-mode, real-time tracking and vehicle management solution. With full integration of on-board systems, support for both light and heavy-duty vehicles, two-way messaging, remote emergency switch, audible alerts, and customizable application integration, the HE5500 is in a class of its own.
The HawkEye 5500 utilizes 2G/3G/LTE and the Iridium® satellite network in order to provide reliable, high-bandwidth, global coverage with the best quality and highest resolution tracking and communication in the market.
Offload diagnostic, user, and other on-board system data over AES-256 encrypted communications with your fleet operations center or via tailor-made Bluetooth connected application.
Customize reporting rates based on movement or location and provide driver feedback when safety violations occur.
Versatile & Interconnected
Offload diagnostic, user, and other on-board system data over AES-256 encrypted communications with your fleet operations center or via tailor-made Bluetooth connected application. Customize reporting rates based on movement or location and provide driver feedback when safety violations occur.
- Full Integration of On-Board Systems
-
The HE5500 can generate automatic monitoring and alerting on driver safety, proactive monitoring of vehicle health, and analytics about usage, performance, and behavior
- Tracking
-
Real-time asset tracking, mission coordination, operational analytics, and situational awareness powered by Iridium + cellular connection
- Vehicle Integration
-
Comprehensive vehicle integration into ignition, OBD, and infotainment systems allow for optimal asset performance with no required user interaction
- Geofencing
-
Create boundaries, automatically alter asset behavior, and receive notifications when boundaries are breached; Up to 75 Geofences (Polygon & Circular) with User Accessible SIM, GPS & Bluetooth / RFIS
- SkyRouter Command Center
-
The SkyRouter portal allows for effective high security command and control of your fleet anywhere on the planet and on any device using iOS, Android, or web browser
- Built-In Trip Management
-
Automatically detect trips, identify drivers and passengers and generate analytics about usage, performance, and behavior
- Safety
-
Offers automatic monitoring and alerting on driver safety and emergency situations, which improve driving habits, reduce accidents, and decrease the time to respond to emergencies
- Compliance
-
HE5500 integrated telematics solutions help you be compliant with most current or future contract providers
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 140mm x 110mm x 32mm |
| Weight | 450 g |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Operating Humidity Range | 75 % RH |
| Storage Temperature Range | -40 to +50 ℃ |
| Storage Humidity Range | 93 % RH |
| Ingress Protection | IP54 |
| Battery | |
| Battery Type | 18650 Li-ON (PCB Protected) (3.7v @ 3500mAh) |
| Power | |
| Power Supply | 12-36 v Power, 2xD-IO In, (1) A-IO in, (1) Emergency Switch |
| Network | |
| Additional Networks | Cellular: Multiband (GSM, USMTS, 2G, 3G, LTE) |
- FCC
- CE
- ISED
- ITU
- RCM
- GITECKI
- REACH ROHS
- Iridium Approved
- ECH60945 (IEC 60945)
- Maritime Navigation & Radio Communication (EMC) Emissions & immunity Tested
