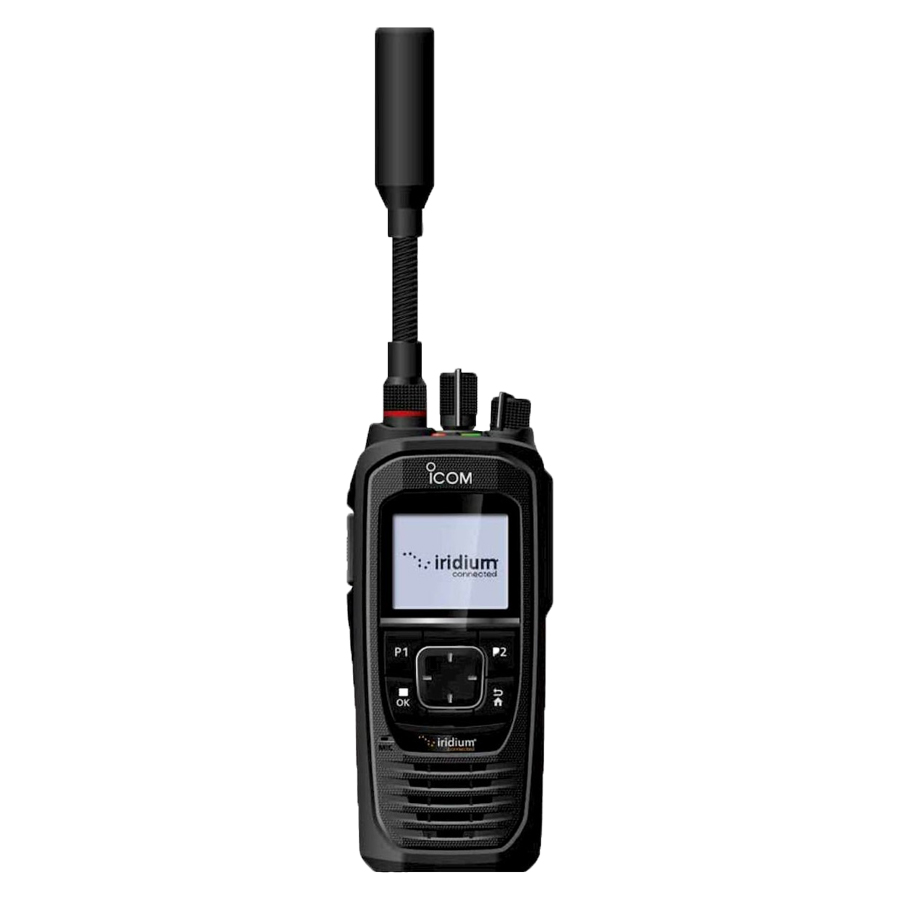

IC-SAT100

Model : SAT100
Services: Iridium Push-To-Talk
-

Truly Global Push-To-Talk through the Iridium® Satellite Network
 -

Compatible with Iridium Extreme® PTT Handset
 -

IP67-Rated
 -

Access to Icom’s Portfolio of LMR Accessories
 -

Includes Battery Pack, Belt Clip, Antenna, Desktop Charger, and AC Adapter

		IC-SAT100
Model : SAT100
Services: Iridium Push-To-Talk
-

Truly Global Push-To-Talk through the Iridium® Satellite Network
 -

Compatible with Iridium Extreme® PTT Handset
 -

IP67-Rated
 -

Access to Icom’s Portfolio of LMR Accessories
 -

Includes Battery Pack, Belt Clip, Antenna, Desktop Charger, and AC Adapter

				A Truly Global LMR Experience
The IC-SAT100 provides a true Land Mobile Radio (LMR) experience with an IP67-rated durable housing, large front-ported speaker for loud audio, a top mounted on/off volume selector, talkgroup selector for “no-look” operation, and a field replaceable antenna. Icom offers a large portfolio of Land Mobile Radio accessories for the radio to enhance the customers communication requirements.
The IC-SAT100 operates exclusively on Iridium Push-To-Talk, and is compatible with the full portfolio of Iridium and Iridium Connected® PTT products for easy-to-use, truly global push-to-talk capabilities. Icom also offers the VE-PG4, a RoIP router to interconnect and manage latency of other radio technologies into a unified communication scheme.

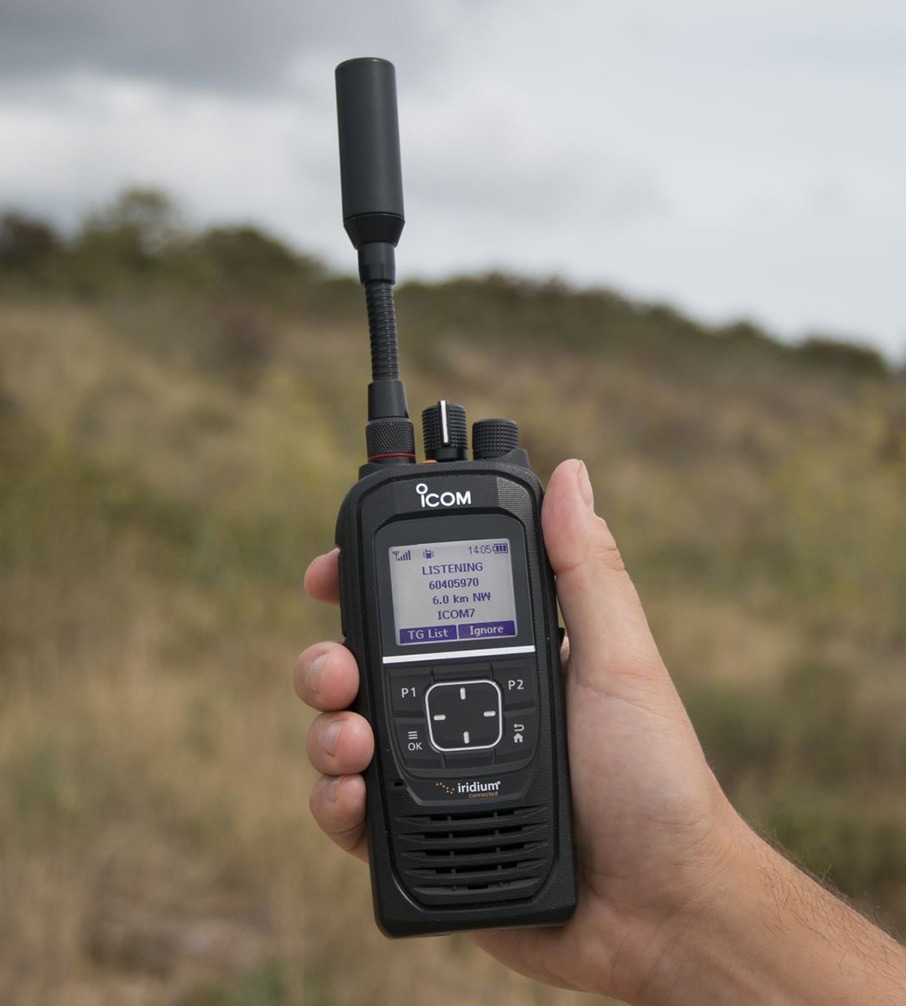

Key Features
The IC-SAT100 operates exclusively on Iridium PTT, and is compatible with the full portfolio of Iridium and Iridium Connected PTT products.
- Iridium PTT Group Communications

-

With access to configure up to (15) talkgroups through Iridium PTT Command Center

- Multiple Languages

-

English, French, Japanese, and Spanish

- 1500 mW Powerful Audio

- Talkgroup Scan

- Priority Interrupt Calling

- IP67 Waterproof and Dust-Tight

- Emergency Button

- Built-in Bluetooth and GPS Receiver

- Interoperability

-

Compatible with Iridium Extreme PTT Handset; Interoperability with IDASTM and Analog Radios Through Optional VE-PG4, RoIP Gateway (Planned)

- Included Accessories

-

Battery Pack (BP-300), Belt Clip (MBB-5), Antenna (FA-S102U), Desktop Charger (BC-241), and AC Adapter (BC-242)

					Related Case Studies
Related Case Studies
The local affiliate of Iridium partner Globalsat Group worked with an Argentinian natural gas transportation company to test and deploy a solution leveraging Iridium Push-To-Talk capabilities through interoperable equipment, allowing for field teams to utilize satellite connectivity with VHF radio and VoIP telephony were unavailable.
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 135mm x 57.8mm x 32.8mm |
| Weight | 360 g |
| Iridium Embedded Technology | Iridium Core 9523 Module |
| Environmental | |
| Operating Temperature Range | –30 to +60 ℃ |
| Durability Standard | MIL-STD 810G, Water, Shock and Dust-Proof |
| Ingress Protection | IP67, IP55, IP54 |
| Battery | |
| Capacity | 7.22200 mAh |
| Battery Life, Talk Time | 7 hr |
| Battery Life, Standy | 14.5 hr |
| Network | |
| Telephony | No |
| Location Based Services | No |
| User Experience | |
| Screen | 33 × 27 mm, Viewing Area; 128 x 104 Pixels |
- IP54
 - IP55
 - IP67

Login to access additional resources
Resources
Infographic detailing how Iridium's Land Mobile Solutions work in comparison to traditional terrestrial solutions
