2J-Multiband 2J6551

Manufacturer : Multiband Antennas Limited

Model : 2J6551

4-in-1 Combination Antenna
Full 4G/LTE Backward Compatibility
Durability Rated: IP67, IK09, IP69K
Works in Extreme Climates: -40°C to +85°C
Ground Plane Dependent

2J-Multiband 2J6551

Manufacturer : Multiband Antennas Limited

Model : 2J6551

4-in-1 Combination Antenna
Full 4G/LTE Backward Compatibility
Durability Rated: IP67, IK09, IP69K
Works in Extreme Climates: -40°C to +85°C
Ground Plane Dependent

Optimizing Versatility
With Reliability

The 2J6551BGF antenna from 2J brings reliable, constant truly global connectivity with the highest precision ideal for tracking/mapping devices, automotive navigation, commercial transportation, IoT/machine-to-machine connectivity, and worldwide video, voice, and data communications.

Compact Antenna With Versatility

The 2J6551BGF operates within 1616MHz-1627MHz frequencies. The Iridium® certified antenna offers reliable, truly global connectivity, including poles, oceans, and airways. This antenna is ideal for worldwide voice and data communications in a variety of situations.

Impact Resistant

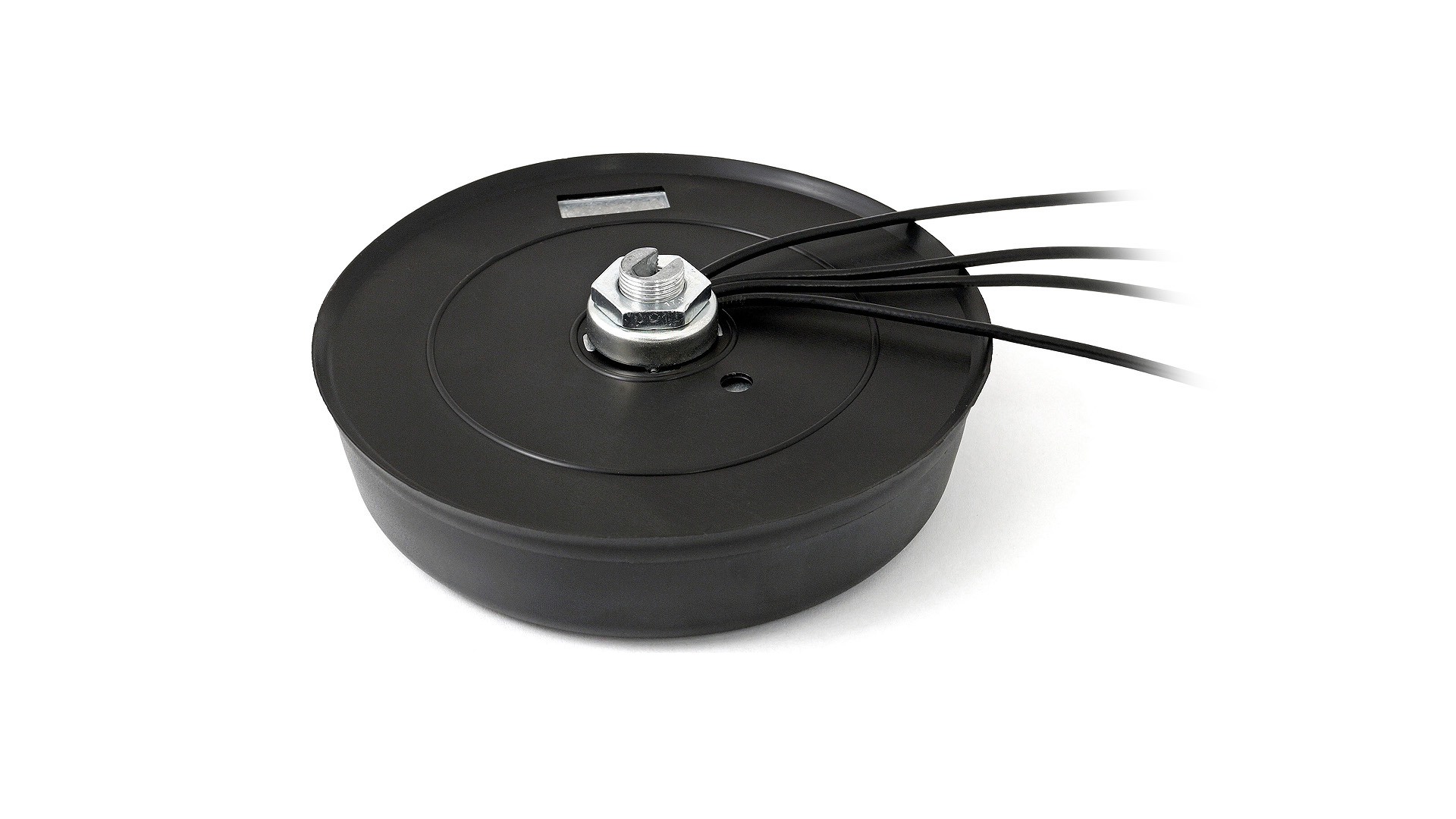

Anti-rotation mounting allows for antenna to stay in place upon installation; high impact resistant ABS cover set on an aluminum base section

Customizable Cable and Connector

Lengths of the cable are customizable to fit a variety of situations

Ground Plane Dependent

Requires an external ground plane to be present to focus its signal

Multiple Cables

Cable 1 AMPS (850 MHz)
Cable 2 GPS (1575.42 MHz)
Cable 3 Wi-Fi / Bluetooth (2.4 GHz)
Cable 4 Iridium (1.616 – 1.626 GHz)

Multi-Band Capabilities

GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), GALILEO L1 (1575.42 MHz), GLONASS (1592 – 1610 MHz)

Technical Specifications


Mechanical
Dimensions ( H x Ø )	31.5mm x 146mm
Iridium Embedded Technology	Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range	-40 °C to +85 °C ℃
Antenna
Polarization	RHCP
RF Interface
Frequency Range	617-960, 1427-2690, 3300-5000, 5150-5925 MHz
I / O Impedence	50 Ohm
Network
Location Based Services	5G, 4G, 3G, 2G, LTE, CDMA
