2J-Multiband 2J6552

Manufacturer : Multiband Antennas Limited

Model : 2J6552

3-in-1 Combination Antenna
Full 4G/LTE Backward Compatibility
Durability Rated: IP67, IK09, IP69K
Works in Extreme Climates: -40°C to +85°C
Ground Plane Dependent

2J-Multiband 2J6552

Manufacturer : Multiband Antennas Limited

Model : 2J6552

3-in-1 Combination Antenna
Full 4G/LTE Backward Compatibility
Durability Rated: IP67, IK09, IP69K
Works in Extreme Climates: -40°C to +85°C
Ground Plane Dependent

Truly Global Mobile Connectivity

The Cellular, GNSS, and Iridium® Screw Mount (2J6552BGF) is a 3-in-1 configuration antenna that offers 5G NR, 4G LTE, 2G, 3G, GPS, QZSS, Galileo, GLONASS and Iridium standards in a single compact housing antenna. The antenna brings reliable, constant truly global connectivity ideal for tracking/mapping.

Compact Antenna With Versatility

Covering 850 to 2.1GHz, GPS, GALILEO L1 & GLONASS, Iridium (1.616 – 1.626 GHz), the antennas are housed in a high impact resistant ABS cover set on an aluminum machined base section that allows for ultimate versatility.

617-5925 MHz Sub 6GHz Bands

Provides 360-degree horizontal radiation pattern and allows for efficient operations within the 617MHz-5925MHz frequencies spectrum

Customizable Cable and Connector

Lengths of the cable are customizable to fit a variety of situations

Ultra-Wide Band with Multiple Cables

Cable 1 AMPS (850 MHz) GSM (900 MHz) DCS (1800 MHz) PCS (1900 MHz) 3G (UMTS 2.1 GHz)
Cable 2 GPS (1575.42 MHz) GALILEO L1 (1575.42 MHz) GLONASS (1592 – 1610 MHz)
Cable 3 IRIDIUM (1.616 – 1.626 GHz)

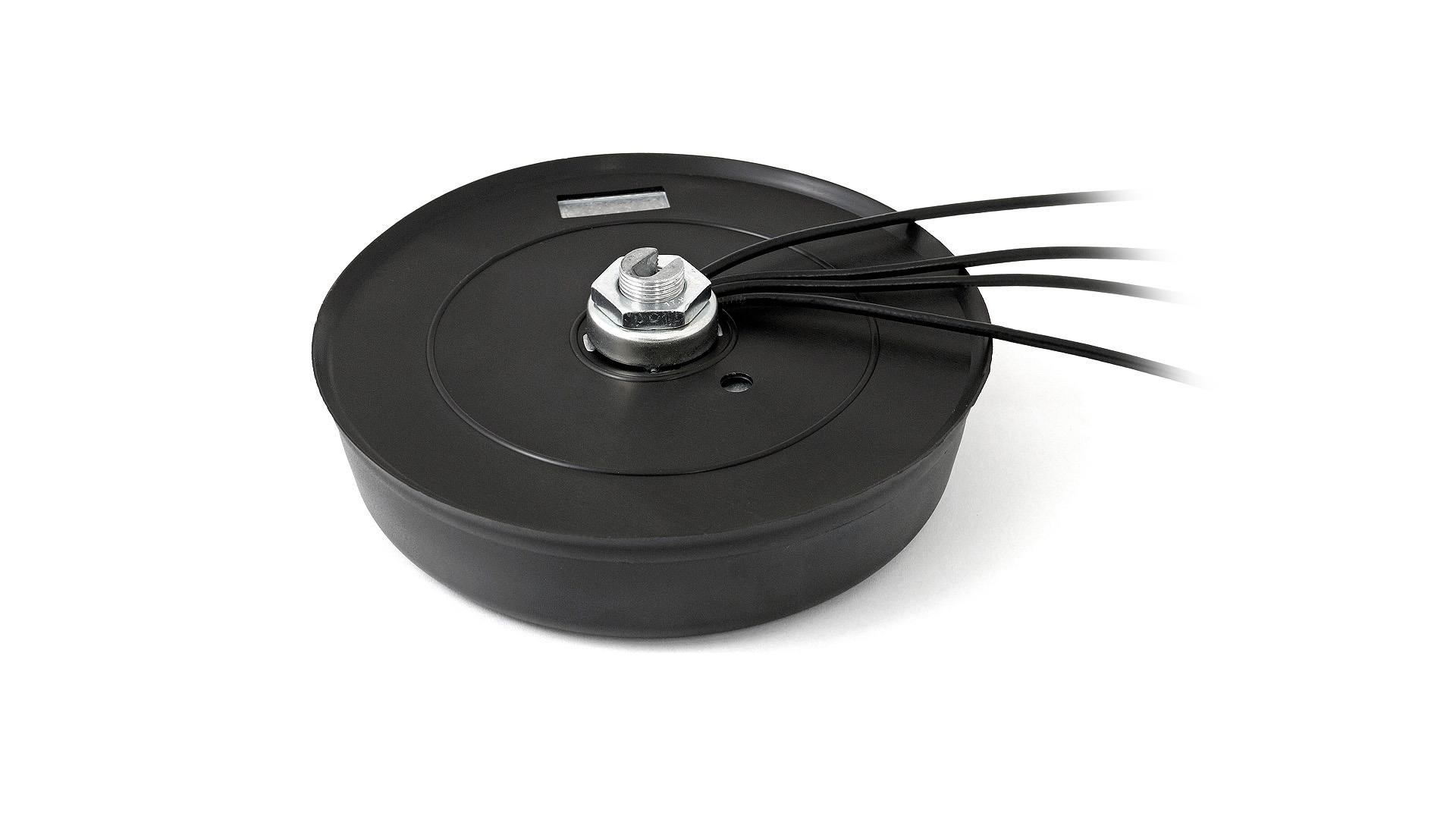

Anti-Rotation Mounting

Versatile selection of mounts allows for antenna to stay in place upon installation

Heavy Duty Antenna

Durable and weather resilient, allowing for installation anywhere

Technical Specifications


Mechanical
Dimensions ( H x Ø )	31.5mm x 146mm
Iridium Embedded Technology	Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range	-40 to +85 ℃
Ingress Protection	IP67, IP69
Antenna
Polarization	RCHD
RF Interface
Frequency Range	617-960, 1427-2690, 3300-5000, 5150-5925 MHz
I / O Impedence	50 Ohm
Network
Additional Networks	5G, 4G LTE, 3G and 2G
Location Based Services	GPS, QZSS, Galileo, GLONASS
