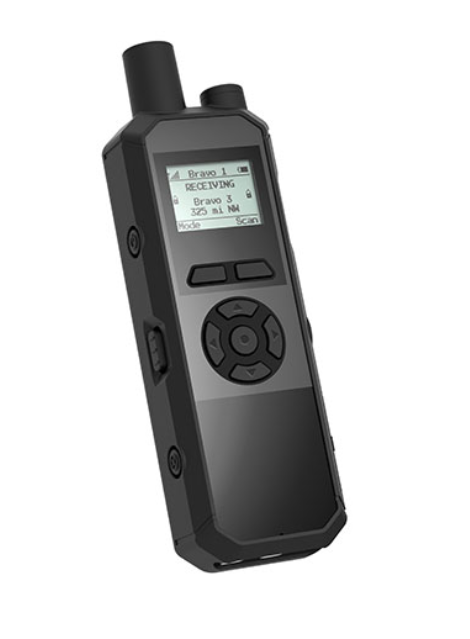

Bracer™ Tactical SatCom Radio
Services: Iridium Push-To-Talk
-
Extreme Resilience
-
Superior Security
-
High Availability
-
Compact Carrying
-
Third Party Integration
Bracer™ Tactical SatCom Radio
Services: Iridium Push-To-Talk
-
Extreme Resilience
-
Superior Security
-
High Availability
-
Compact Carrying
-
Third Party Integration
Built For Harsh Environments
Designed for discretion and engineered to operate in the planet’s harshest environments, it is a robust, effective and reliable commercial TacSat solution. Powered by Iridium® satellite technology, the 100% BLOS, Push-To-Talk device keeps you connected through a highly-resilient network, while end-to-end encryption protects your information and allows you to operate without constraints.
Dependable and Real-Time Communication
Encrypted GPS-based position location information offers real-time situational awareness and supports rapid decision-making.
- Instant C2
-
Configure global coverage in seconds, so that when time is of the essence securing communication lines is simple
- Real-Time Situational Awareness
-
GPS-based position location information offers real-time situational awareness and supports rapid decision-making
- Emergency Alerting
-
Asset Tracking is also supported with an emergency alert function that is received in seconds by all handsets in the Talkgroup – Reducing reaction times
- Affordability
-
Elite functionality at a fraction of the cost of military alternatives
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 170mm x 76mm x 33mm |
| Weight | 400 g |
| Environmental | |
| Operating Temperature Range | -10 to +55 ℃ |
| Storage Temperature Range | -40 to +60 ℃ |
| Ingress Protection | IP66, IP67 to 1m Immersion, IEC/EN 60529 |
| Vibration Standard | Tested to MIL-STD-810G / Def Stan 00-035 for Wheeled/Tracked Operation and Helicopter Transportation |
| Antenna | |
| Type | SMA Connection for External Iridium Antenna |
| RF Interface | |
| Frequency Range | 1616 - 1626.5 MHz |
| Battery | |
| Capacity | 600 mAh |
| Battery Type | Lithium Ion |
| Charge Time | 3 hr |
| Power | |
| Power Supply | Internal Rechargeable Li-ion Battery Pack |
| User Experience | |
| Screen | LCD Display, Variable LED Backlight |
- CE
- FCC
- UL
